Get Sealing Confidence with Victor Reinz® Products
PROBLEM
“An original, application-specific gasket has worn out, and I can’t find a suitable replacement.”
SOLUTION
Four widely-applicable Victor Reinz gasket materials are available in roll format to meet the requirements of bulk users; simply select the correct material and create a custom gasket for your unique needs.

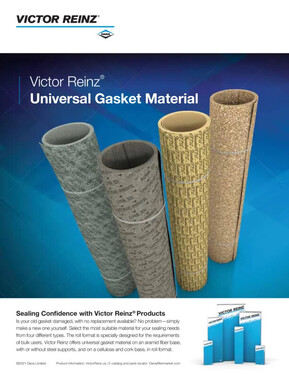

Is your old gasket damaged, with no replacement available? No problem—simply make a new one. Select the most suitable material for your sealing needs from four different types. Victor Reinz offers universal gasket material on an aramid fiber base, with or without steel supports, and on a cellulose and cork base: AFM 22, AFM 37/8, REINZOLOID FS 53, and RGC 257. The roll format is specially designed for the requirements of bulk users.
AFM 22
AFM (Asbestos Free Material) 22 shows very high mechanical strength together with very high pressure and temperature resistance, yet still conforms well to sealing surfaces. AFM 22 consists of aramid fiber with a metal core and is ideal for cylinder head gaskets.
REINZ-AFM 37/8
REINZ-AFM (Asbestos Free Material) 37/8 is a very economical gasket material. It exhibits good thermal and mechanical strength, is highly conformable, and is suitable for sealing oils and other liquids. This gasket material consists of aramid fiber processed with high-grade elastomers.
REINZOLOID FS 53
REINZOLOID FS 53 is an impregnated soft composite material on a cellulose base and features a good cost-to-benefit ratio. Gaskets made of cellulose are very adaptable and prove highly durable in contact with oil and fuel.
RGC 257
RGC 257 is a nitrile rubber-coated cork that holds up well to oils and aromatic solvents. Great compressibility and recovery are the key benefits offered by this gasket material. RGC 257 is preferred in gaskets with combinations of glass and metal.
The Right Material for Your Application
Our universal gasket material is ideal for many applications. Use according to application and temperature guidelines on the chart below.
- Automotive
- Boats
- Campers
- Home and garden
Gasket material: Roll
| Product | Material | Applications | Temp. Range | Medium, Durable Against | Roll Size | Thickness/ Victor Reinz Part # |
|---|---|---|---|---|---|---|
| AFM (Asbestos Free Material) 22 | Aramid Fiber w/Metal Core | Cylinder Head Exhaust Manifold Gearbox Flange Inlet Manifold Etc. |
< 752°F (400°C) | Fuel, Oil Antifreeze Anti-Corrosion |
59 x 19 3/4 inches | 1/32 (0.75mm)/ 70-31212-10 3/64 (1.00mm)/ 70-31213-10 3/64 (1.20mm)/ 70-31214-10 3/64 (1.30mm)/ 70-31215-10 1/16 (1.40mm)/ 70-31216-10 |
| AFM (Asbestos Free Material) 37/8 | Aramid Fiber | Axles Inlet Manifold Instruments Oil Sump Piping Pumps Valve Cover Etc. |
< 572°F (300°C) | Fuel, Oil Antifreeze Anti-Corrosion |
59 x 19 3/4 inches | 1/64 (0.30mm)/ 70-35153-00 1/64 (0.50mm)/ 70-35154-00 1/32 (0.75mm)/ 70-35155-00 3/64 (1.00mm)/ 70-35156-00 1/16 (1.50mm)/ 70-35157-00 |
| REINZOLOID FS 53 | Cellulose | Axles Carburetor Flange Fuel Pumps Gearbox Oil Pumps Steering Housing Thermostats Water Pumps Etc. |
< 248°F (120°C) | Fuel, Oil Antifreeze Anti-Corrosion |
196 5/6 x 19 3/4 inches | 1/64 (0.25mm)/ 70-29214-10 1/64 (0.50mm)/ 70-29216-10 1/32 (0.75mm)/ 70-29217-10 3/64 (1.00mm)/ 70-29218-10 1/16 (1.50mm)/ 70-29219-10 |
| RGC 257 | Rubber/Cork | Control Units Gearbox Cover Oil Sump Valve Cover Etc. |
< 300°F (150°C) | Fuel, Oil | 36 x 36 inches | 5/64 (2.00mm)/ 70-31222-00 1/8 (3.00mm)/ 70-31223-00 5/32 (4.00mm)/ 70-31224-00 |
Gasket material: Combo-pack sheets
| Product | Dimensions | Material | Thickness/ Victor Reinz Part # |
|---|---|---|---|
| KIT XL | 11 4/5 x 8 1/4 inches | 1x AFM 22 1x AFM 37/8 1x AFM 37/8 1x REINZOLOID FS 53 1x REINZOLOID FS 53 |
3/64 (1.22mm)/ 16-27250-03 1/64 (0.50mm)/ 16-27250-03 3/64 (1.00mm)/ 16-27250-03 1/64 (0.50mm)/ 16-27250-03 3/64 (1.00mm)/ 16-27250-03 |
| KIT XXL | 16 1/2 x 11 4/5 inches | 1x AFM 22 1x AFM 37/8 1x AFM 37/8 1x REINZOLOID FS 53 1x REINZOLOID FS 53 |
3/64 (1.22mm)/ 16-31990-01 1/64 (0.50mm)/ 16-31990-01 3/64 (1.00mm)/ 16-31990-01 1/64 (0.50mm)/ 16-31990-01 3/64 (1.00mm)/ 16-31990-01 |
