Stronger, Longer Lasting, Reusable Performance Gaskets
PROBLEM
“With heat cycles and exposure to dirt and oil, paper and cork degrade and break down—and they can rip or tear when swapping out parts.”
SOLUTION
Engineered with high-performance compressible foam gasket material and a core of metal, Victor Reinz® Victor-Lock™ gaskets will not degrade, and they can be reused after maintenance.
Get ultimate sealing power for your vehicle with Victor Reinz® Victor-Lock™ performance gaskets, featuring FoamFlex™ with silicone bead over an aluminum core. For high-performance applications, look for high-strength, reusable Victor-Lock gaskets with the signature blue bead.
Premium Gaskets Designed for High Performance
Victor-Lock automotive gaskets eliminate the possibility of degradation, delivering dependability and long gasket life. With no RTV required, you can minimize downtime, eliminate the mess, and enjoy leak-free performance.
Victor-Lock Benefits
Save time
- Instant seal
- No RTV and no waiting
- Service and reuse during rebuilds
Superior materials
- Foam on the core provides contraction and expansion capacity
- Rubber sealing bead improves sealing capability and aids in release during disassembly
- Core of metal for unmatched strength
Dependable seal
- Maintains the seal despite diff cover shifting
- Elastomer gasket bead seals even in fluctuating temperatures
- No come-backs for leaky differentials
High Performance Compressible Foam Material
Victor Reinz designed premium Victor-Lock gaskets for high-demand applications, with our resilient FoamFlex™ material on both sides of the gasket and an aluminum core for strength. The elastomeric bead localizes sealing stresses and aids in sealing even between irregular components.
With heat cycles and exposure to dirt and oil, paper and cork degrade and break down. When swapping out parts, paper and cork gaskets can rip or tear. Victor-Lock gaskets eliminate the possibility of degradation, delivering dependability and long gasket life.

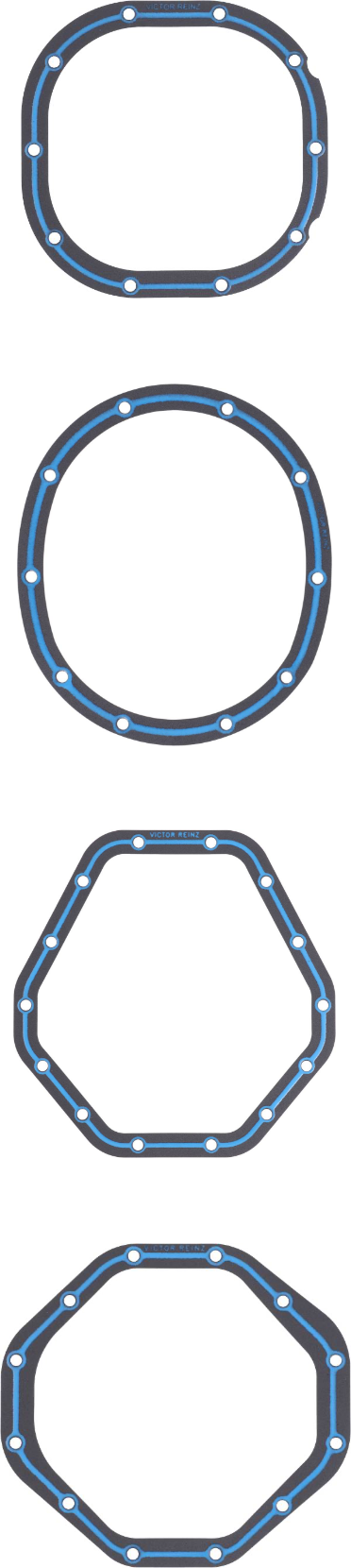

Victor-Lock Performance Diff Cover Gaskets
| Victor-Lock Part Number | Axle Model / Description | Standard Part Number |
|---|---|---|
| 71-20083-00 | AAM 9.25” (14 bolt front) | 71-14851-00 |
| 71-20053-00 | Dana 44 | 71-14811-00 |
| 71-20063-00 | GM 10.5 14 bolt (Full-float) | 71-14832-00 |
| 71-20059-00 | GM 12 Bolt (Passenger Car) | 71-14827-00 |
| 71-20065-00 | Ford 10.25” / 10.5” | 71-14839-00 |
| 71-20064-00 | Chrysler 9.25” (Rear) | 71-14836-00 |
| 71-20058-00 | Dana 80 | 71-14840-00 |
| 71-20067-00 | Ford 7.5” | 71-14808-00 |
| 71-20056-00 | Dana 60 | 71-14868-00 |
| 71-20052-00 | Dana 35 | 71-14819-00 |
| 71-19961-00 | Ford 8” (3rd Member) | 71-14838-00 |
| 71-19892-00 | AMC 20 | 71-14837-00 |
| 71-19860-00 | AAM 10.5” | 71-14889-00 |
| 71-19857-00 | GM 14 bolt (Semi-float) | 71-14834-00 |
| 71-19847-00 | GM 8” | 71-14853-00 |
| 71-19615-00 | Dana 44 (Nissan) | |
| 71-19567-00 | GM 7.5” | 71-14824-00 |
| 71-19564-00 | Dana 44 HD / M226 | |
| 71-19538-00 | Chrysler 8.25” (Rear) | 71-14807-00 |
| 71-19536-00 | AAM 9.25” (12 bolt front) | |
| 71-19239-00 | Chrysler/AAM 11.5” | 71-14850-00 |
| 71-19179-00 | Toyota 8” | 71-15443-00 |
| 71-19196-00 | Dana 30 | 71-14809-00 |
| 71-20049-00 | Ford 9.75” | |
| 71-20048-00 | Ford 8.8” | 71-14810-00 |
| 71-20047-00 | Ford 9” | 71-14829-00 |
| 71-19615-00 | Dana 44 (Nissan) |

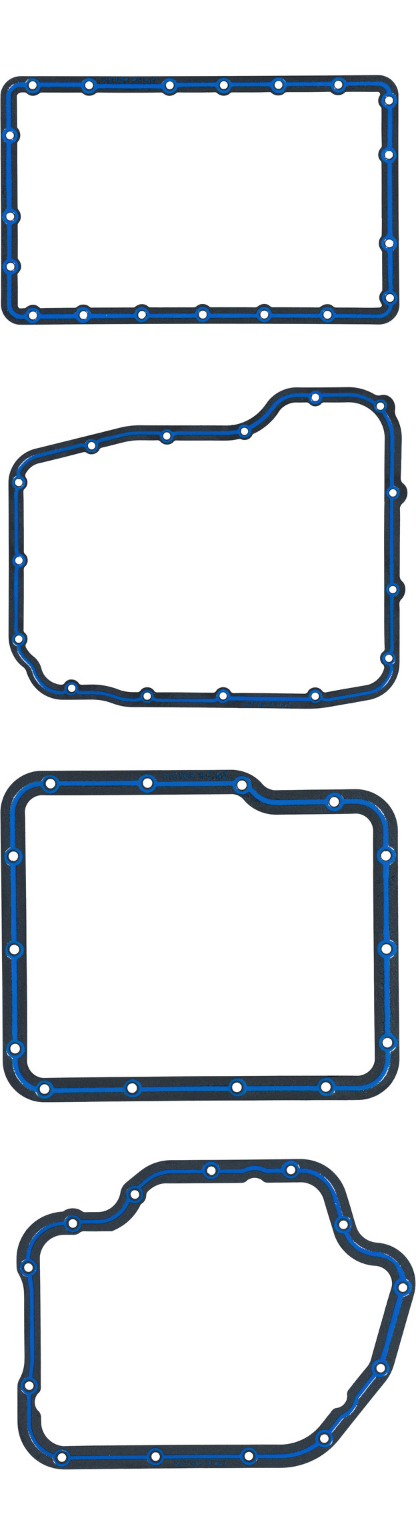

Victor-Lock Performance Transmission Pan Gaskets
| Victor-Lock Part Number | Transmission / Description | Standard Part Number |
|---|---|---|
| 71-19549-00 | GM 4L80 and 4L85 | |
| 71-19550-00 | GM 6L80 and 6L85 | |
| 71-19551-00 | Ford F6R80, F6R75 and F6R60 | |
| 71-19552-00 | Ford A4LD, 4R44E, 4R55E and 5R55E |
|
| 71-19555-00 | Chrysler 42RLE | |
| 71-19241-00 | Chrysler AW4 and A340 | 71-14950-00 |
| 71-19539-00 | Chrysler 68RFE, 66RFE, 65RFE, 545RFE and 45RFE |
71-14956-00 |
| 71-19540-00 | GM Powerglide | 71-14897-00 |
| 71-19541-00 | GM THM200-4R | |
| 71-20070-00 | Ford C4 | 71-14972-00 |
| 71-19616-00 | GM TH700-R4, 4L60, 4L60E and 4L65E |
|
| 71-19893-00 | GM Turbo 400 | |
| 71-20069-00 | Chrysler 727 Torqueflite, A518, A618, 36RH, 46RH, 46RE, 47RH, 47RE and 48RE | |
| 71-20073-00 | Ford C6 | |
| 71-20078-00 | Ford AOD | |
| 71-20079-00 | Ford E4OD |
